Crop: Circle disabled

ui_trio · November 12, 2020, 7:17pm

Hi!

As I can see in the details shotcut has Crop: Circle feature. I installed it on my Arch Linux but this feature not visible or disabled. I have this version of the shotcut: Shotcut version ARCH-20.09.27

Do you have any information about it, why this feature is not visible or disabled?

Thank you for your help!

RilosVideos · November 12, 2020, 7:35pm

Crop: circle works for me on windows - not sure about Linux?

shotcut · November 12, 2020, 8:06pm

It is because you are not using a version built by us and listed in our download page.

ui_trio · November 12, 2020, 8:34pm

You were right! Now I downloaded this version: Shotcut version 20.10.31
There is also no option for Crop: Circle.

shotcut · November 12, 2020, 9:14pm

Yes there is in portable, snap, AppImage, and flatpak (you did not specify). Maybe you are only looking through the favorite filters.

ui_trio · November 12, 2020, 10:00pm

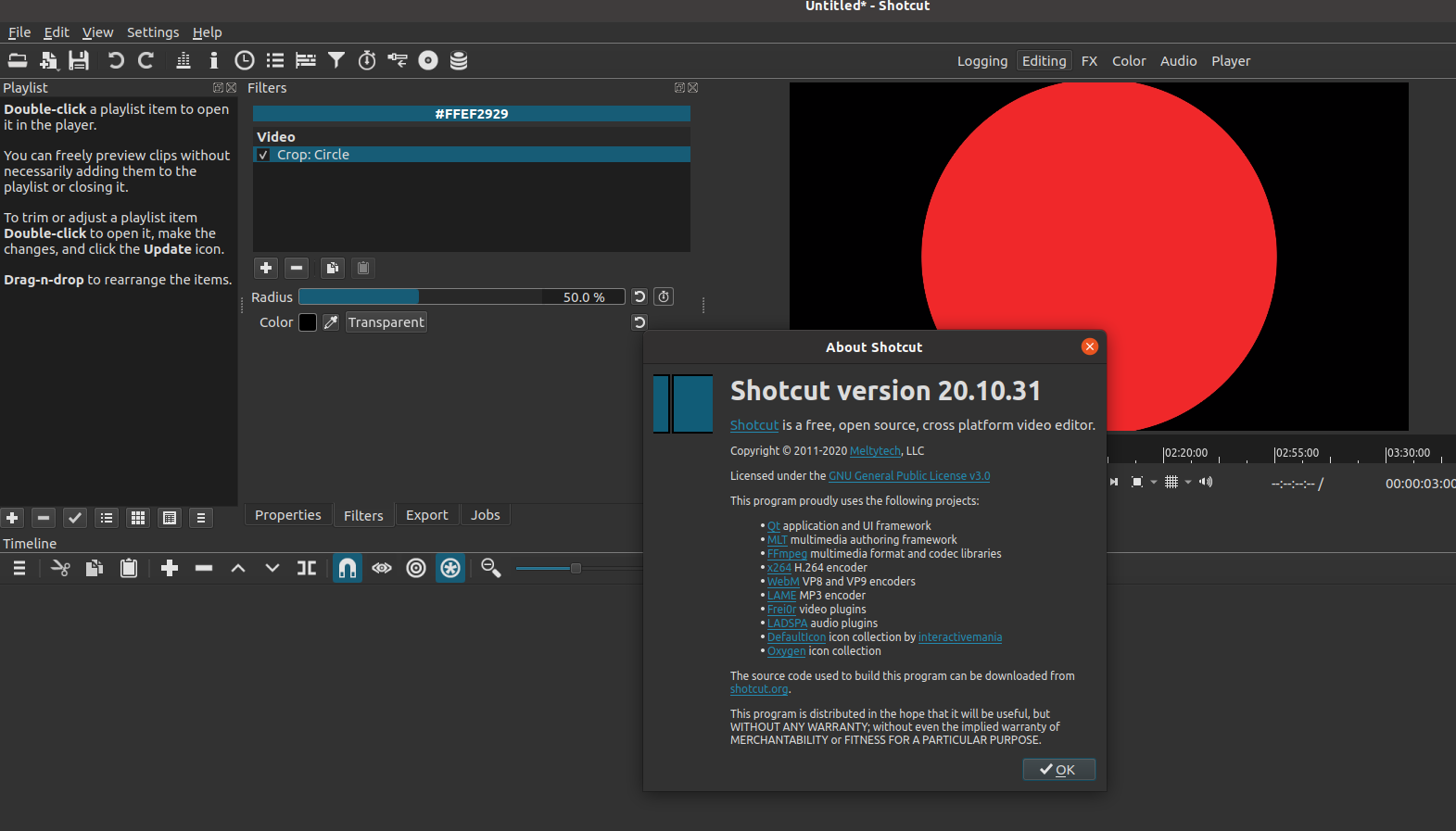

I made a videot about the process. My linux version is:

Manjaro Linux
DISTRIB_ID=ManjaroLinux
DISTRIB_RELEASE=20.2
DISTRIB_CODENAME=Nibia
DISTRIB_DESCRIPTION=“Manjaro Linux”
Manjaro Linux
NAME=“Manjaro Linux”
ID=manjaro
ID_LIKE=arch
BUILD_ID=rolling
PRETTY_NAME=“Manjaro Linux”
ANSI_COLOR=“32;1;24;144;200”
HOME_URL=“https://manjaro.org/”
DOCUMENTATION_URL=“https://wiki.manjaro.org/”
SUPPORT_URL=“https://manjaro.org/”
BUG_REPORT_URL=“https://bugs.manjaro.org/”
LOGO=manjarolinux

Kernel:

Linux 5.7.19-2-MANJARO #1 SMP PREEMPT Fri Aug 28 20:22:12 UTC 2020 x86_64 GNU/Linux

CropCircle

shotcut · November 12, 2020, 10:04pm

You are running bin/shotcut. That is wrong as stated on the download page under Linux portable tar users :

double-clicking the shotcut shell script. Do not try to run bin/shotcut directly

ui_trio · November 12, 2020, 11:37pm

No. I found the problem.

Crop: Circle feature depend on mlt filter qtcrop which is not supported on latest mlt.

github.com

mltframework/shotcut/blob/master/src/qml/filters/crop_circle/meta.qml#L8


import QtQuick 2.0
import org.shotcut.qml 1.0

Metadata {
    type: Metadata.Filter
    objectName: 'cropCircle'
    name: qsTr('Crop: Circle')
    mlt_service: 'qtcrop'
    qml: 'ui.qml'
    keyframes {
        allowAnimateIn: true
        allowAnimateOut: true
        simpleProperties: ['radius']
        parameters: [
            Parameter {
                name: qsTr('Radius')
                property: 'radius'
                isSimple: true

That is why it is not working.

shotcut · November 12, 2020, 11:51pm

The builds we provide bundle their dependencies including MLT, which is newer than the latest release since we develop that as well. When you run the portable binary directly it does not find that MLT, it finds whatever happens to be on your system or nothing. When you run the launch script, it uses the bundled MLT that includes the crop filter.

ui_trio · November 16, 2020, 1:15pm

You are right! Now it fixed! I hade to use “Exec” command from Shotcut.desktop file. Thank you!
